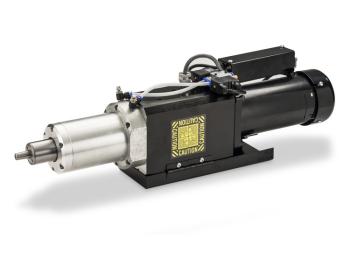

Series 60 Low Speed Automatic Feed Drill

  • Low Speed Automatic Feed Drill | Low Speed Self Feed Drill | Dumore Series 60
  • Dumore Series 60 Automatic Feed Drills | Speed Control
Accessories: Accessories
Replacement Parts: Replacement Parts
Theory of Operation: Theory of Operation
Operating Instructions: Operating Instructions
Warranty: Warranty

Dumore Series 60 low speed automatic feed drills include:

  • Electronic Speed Control
  • Forward & Rear Switches
  • Flow Control Valves
  • 4-Way Solenoid Valve


Part:  8569-210 (Past Catalog Reference: 60-021)
Price: $3,715.00

Quantity

Specifications
Stroke Drilling 0-3" adjustable to within ± 0.001"
Spindle Speeds
Variable by changing pulley 		1,000 to 2,500 rpm
Infinitely variable with dial speed control
Motor Dumore 1/3 HP permanent magnet, 115V, 50/60 Hz, AC
Spindle Taper Jacobs #2
Drilling Capacity 5/16" (mild steel)
Thrust 300 lbs maximum at 100 psi line pressure
Rapid Approach Feed Rate Up to 600 inches per minute
Controlled Feed Rate 0 to 60 inches per minute
Seals Anti-friction neoprene v-cup
Bearings Precision sealed ball bearings
Lubrication Automatic through Filter-Oiler-Regulator (R649-0050) - Sold Separately
Mounting Nose Mounted - Brackets Sold Separately
Weight 46 lbs
