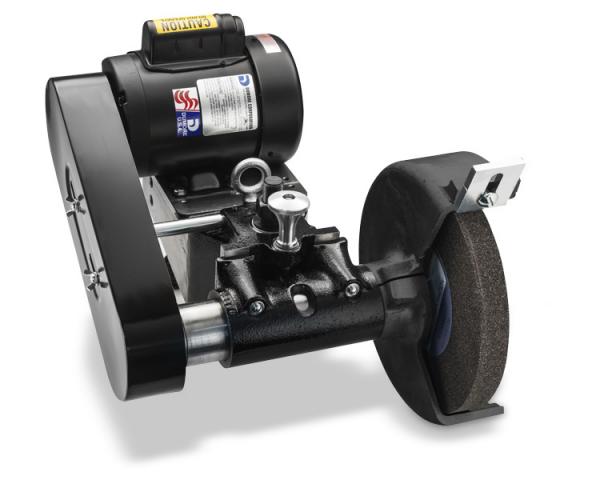

Series 25 Tool Post Grinder, 440VAC 3-Phase

Spindles: Spindles
Grinding Wheels: Grinding Wheels
Replacement Parts: Replacement Parts
Operating Instructions: Operating Instructions
Resources: Resources
Warranty: Warranty

Dumore 440VAC 3-phase Series 12 interchangeable spindle tool post grinders include:

Spindles not included, sold separately

Part: 8317-251 (Past Catalog Reference: 25-024)

Price: $4,070.00

Quantity

Specifications
Motor	3 HP Induction, 440VAC 3-phase
Grinding Speed	External Grinding 1,750 rpm Internal Grinding 2,700 to 7,560 rpm
External Grinding	Up to 12" diameter grinding wheels
Internal Grinding	Up to 5" diameter grinding wheels, 18" depth
Belt Adjustment	Manual
Mounting	T-Bolt
Weight	155 lbs without spindle
